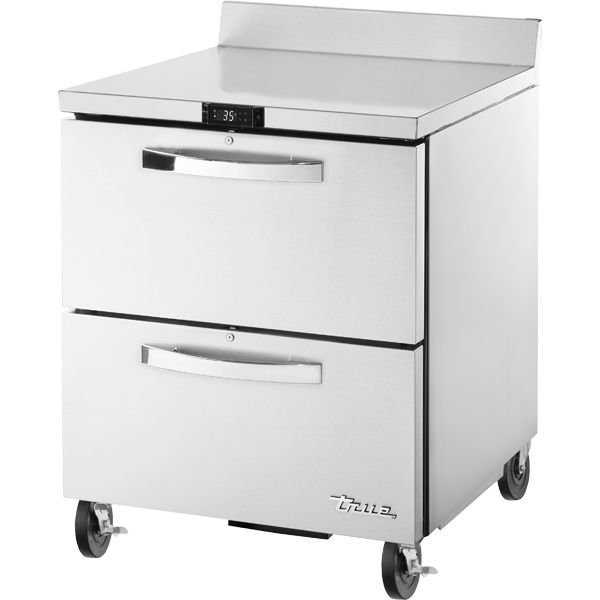

TWT-27D-2-HC~SPEC3

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design

  DESIGN

  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today’s food service marketplace.
• Refrigeration System

  REFRIGERATION SYSTEM

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
  • Energy efficient, factory balanced refrigeration system with guided airflow to provide uniform product temperatures.
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Condensing unit access in back of cabinet, slides out for easy maintenance.
• Cabinet Construction

  CABINET CONSTRUCTION

  • All stainless steel front, top, sides, and back. Top and backsplash are one piece formed construction. Bacteria and food particles cannot be trapped underneath as with other two-piece worktop units.
  • Interior - Stainless steel liner. Stainless steel floor with coved corners.
  • Insulation - entire cabinet structure and drawer facings are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Door

  DRAWERS

  • Stainless steel exterior drawer facings and liners. Stainless steel drawer frames.
  • Drawer locks standard.
  • Each drawer fitted with Lifetime guaranteed heavy duty all metal working spec handle.
  • Heavy-duty stainless steel drawer slides and rollers. Removable without tools for easy cleaning.
  • Magnetic drawer gaskets of one piece construction, removable without tools for ease of cleaning.
  • Drawers will support a wide variety of incremental pan size configurations; divider bars available.
  • Each drawer accommodates one (1) full size 12"L x 20"W x 6"D (305 mm x 508 mm x 153 mm) food pan (sold separately). Drawer will support varying size pan configurations with pan divider bars (drawer pans and divider bars optional).
• Model Features

  MODEL FEATURES

  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Heavy duty 16 gauge top.
  • Counter-Top front is flush with front of drawers.
  • Electronic temperature control with digital display.
  • Spec Series® logo.
  • NSF/ANSI Standard 7 compliant for open food product.
• Electrical

  ELECTRICAL

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • NEMA-5-15R
• Optional Features/Accessories

  OPTIONAL FEATURES/ACCESSORIES Upcharge and lead times may apply.

  • 220-240V/50-60Hz
  • 208 - 230V / 60 Hz.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 2–1/2" (64 mm) diameter castors.
  • Single overshelf.
  • Double overshelf.
  • 28–1/4" (718 mm) deep,1/2" (13 mm) thick, white polyethylene cutting board. Requires “L” brackets.
  • Cutting boards provided by others. Requires "L" brackets. Field installed brackets provided by True (contact factory).
  • ADA compliant models with 34" (864 mm) work surface height.
