TSCI-850CR-SLG-M-WW-1A

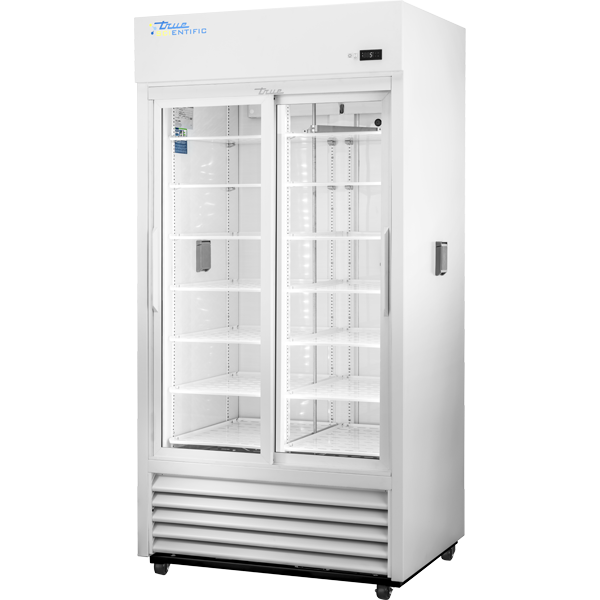

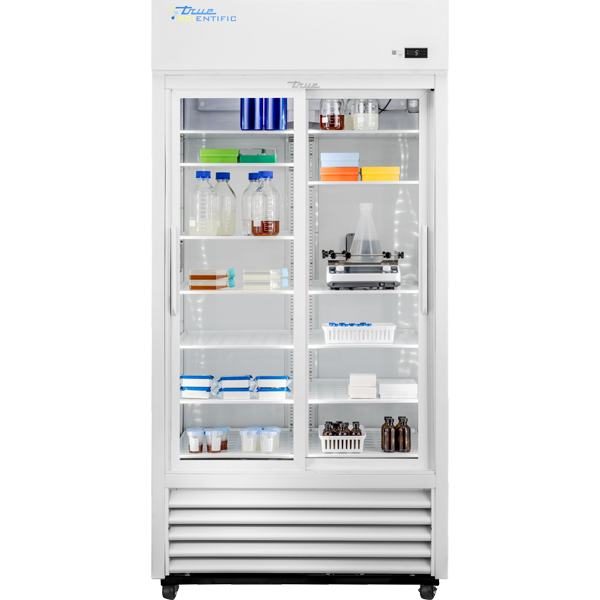

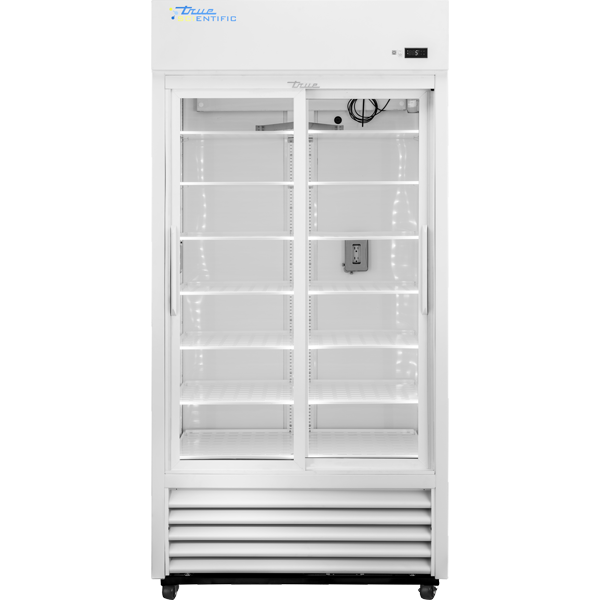

True Scientific – 835 Liters (29.5 Cu Ft) Capacity • Chromatography Unit • Refrigerator – Slide Glass – Multi Door – White Exterior • White Interior – 115 Voltage • Revision A

Spec Sheet

CAD File

Watch Video

Request a Quote

Product Specifications
Highlighted Features

Specifications
Model	TSCI-850CR-SLG-M-WW-1A
Door Count	2
Shelf Count	14 Full
Weight (lbs)	460
Weight (KG)	209

Dimensions	Imperial	Metric
Width	39–1/2	1003
Depth	29–3/4	756
Height	81–3/4	2076
CORD LENGTH	10	3.05

Electrical
Amps	2.8
Voltage	115/60/1
NEMA Configuration	5-15P

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Refrigeration System
- Refrigeration system specifically designed to maintain cabinet temperatures between 2°C - 10°C (36°F - 50°F).
- Expertly designed airflow system controls temperature uniformity throughout the cabinet within +/-1˚C.
- Self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
- Reciprocating hermetic compressor paired with forced air copper tube, aluminum fin condenser.
- Automatic defrost.
- State-of-the-art, electronically communicated evaporator and condensing fan motors. Produces less heat, reduces energy consumption, and provides more efficient airflow.
Cabinet Construction
- Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent. White aluminum back.
- Interior - attractive, white aluminum interior liner with a stainless steel floor.
- Remote alarm contacts.
- Insulation - entire cabinet structure is foamed-in-place using a high density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- 0.625 Inch diameter probe access port in the back of the unit.
Door
- Low-E, double pane thermal insulated glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology.
- Door lock included.
- Each door fitted with 12” (305 mm) long handle.
- Door ajar alarm
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
- Smooth, consistent, self closing doors.
Shelving
- Powder-coated, perforated sheet metal shelves adjustable in 1/2 inch (13 mm) increments. 14 shelves total.
- Four (4) stainless steel shelf clips are included per shelf.
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
Optional Features/accessories (upcharge And Lead Times May Apply)
- Stainless steel interior
- Stainless steel exterior
- Additional perforated sheet metal shelves
- Wire shelves
- 6" standard legs
- 6" seismic legs

Expertly designed air circulation and refrigeration systems ensure temperature stability and uniformity throughout the cabinet, meeting CDC guidelines and eliminating hot and cold spots that could put your contents at risk. Adjustable perforated and non-peel white coated steel shelves, ideal for storing large containers as well as vials and tubes. True Scientific products use R290, a natural refrigerant that is future-proof and sets sustainability standards while providing increased efficiency and reduced operating cost. Reliability you can count on with best-in-class warranty – 3 year labor, 5 year parts, 7 year compressor warranty Self-Cleaning condenser technology reduces the need for cleaning the condensing coil, reduces energy consumption, and helps maintain the tightest temperatures. Battery backed-up digital display of current temperature with alarms for high/low temp, power failure, sensor failure and door ajar. Simulated Temperature Monitoring measured in a glycol-filled bottle to simulate actual product temperature. Chromatography models have a temperature probe port in the rear of the unit, 2 inch access ports on either side, and an internal duplex outlet.
