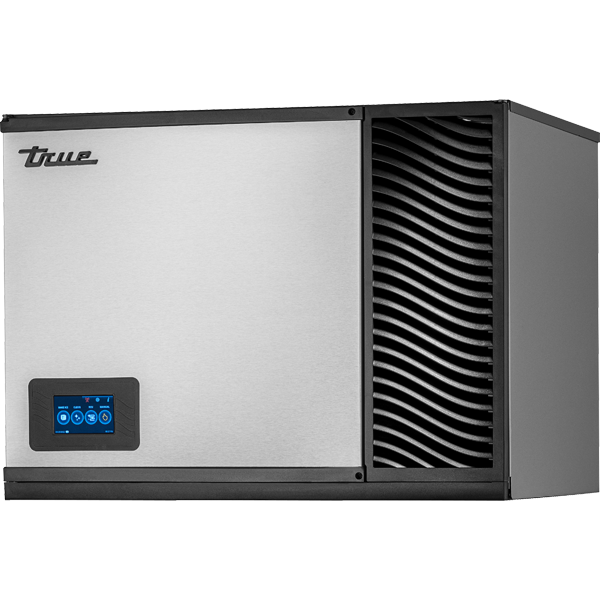

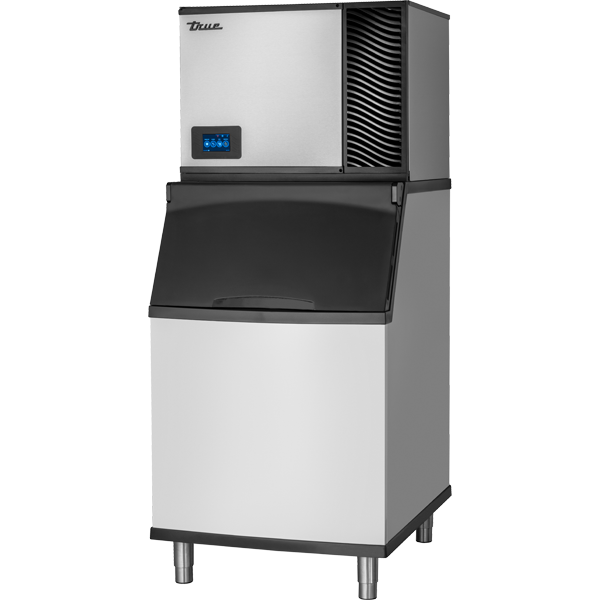

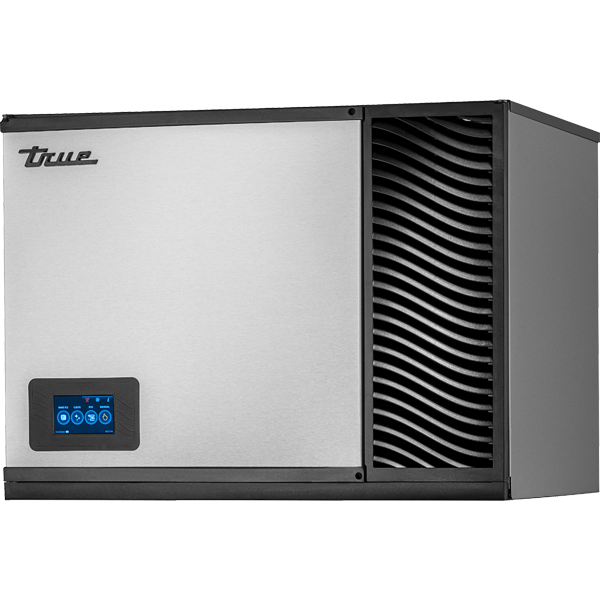

TCIM-430

Air-Cooled Modular Cube Ice Machine

Spec Sheet

CAD File

Watch Video

Request a Quote

Product Specifications
Highlighted Features

Specifications
Model	TCIM-430
Weight (lbs)	184
Weight (KG)	84
Production @ 70/50	450 lbs (204 kg)
Production @ 90/70	346 lbs (157 kg)

Dimensions	Imperial	Metric
Width	30	762
Depth	24	610
Height	22	560

Electrical
Min. Circuit Ampacity	15
Voltage	115/60/1

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

Evaporator Plate
- TrueNcapsuL8® patented, fully insulated, sealed evaporator inhibits mold and bacteria growth.
- The shortest cycle times in the industry — fast ice production with no harvest assist required.
Refrigeration System
- Eco-friendly R290 refrigerant: 4.5 oz (128 g).
- High and low pressure transducers for gauge-free servicing.
- Wide operating range: 35°F to 110°F ambient.
- Ultra-quiet fan operation.
Construction
- TrueTech® clear-coated exterior with superior corrosion and fingerprint resistance.

Delivering up to 37% greater efficiency than ENERGY STAR® standards, True Ice Machines combine patented technology, durable construction, and eco-friendly refrigerant to maximize ice output in any environment. Key features include a TrueNcapsuL8® sealed evaporator, TrueGuard™ antimicrobial protection, TrueZone® air purification for the food zone and ice bin, and a 4.3” touchscreen with ice level monitoring and predictive diagnostics that simplify service, lower energy costs, and minimize downtime.

High-Performance Ice for Every Space, Every Need.

True’s Modular Commercial Cube Ice Machines deliver energy-efficient, high-performance ice for foodservice, retail, hospitality, and service industries. With patented technology, durable construction, and eco-friendly refrigerants, they’re easy to operate, reduce energy costs, and adapt to any space—truly built for every need. Commercial Ice Machines
