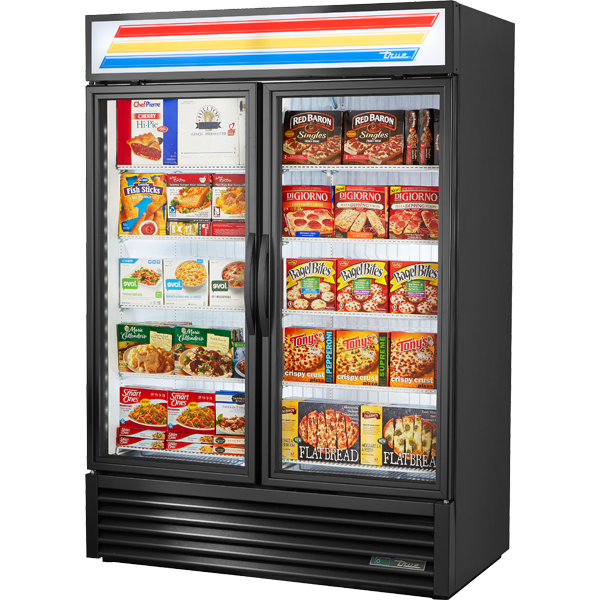

GDM-49F-HC~TSL01

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design
  • True’s glass door freezers are designed with enduring quality that protects your long term investment.
  • True’s commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays frozen food and ice cream.
• Refrigeration System
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
  • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
• Cabinet Construction
  • Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Illuminated exterior sign panel. Variety of sign options available.
• Doors
  • Triple pane thermal insulated glass door assemblies. White powder coated frames.
  • Each door fitted with 12” (305 mm) long extruded handle.
  • Self closing doors. Positive seal, torsion type closure system.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
• Shelving
  • Eight (8) adjustable, heavy duty PVC coated wire shelves 24–9/16”L x 20–3/4”D (624 mm x 528 mm). Four (4) chrome plated shelf clips included per shelf.
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.
  • Two (2) floor racks 21–5/8"L x 26"D (624 mm x 527 mm).
• Lighting
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
• Model Features
  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • See our website www.truemfg.com for latest color and sign offerings.
  • Backguard and floor rack ensure optimum airflow.
  • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
• Electrical
  • Unit is completely pre-wired at the factory and is ready for final connection to a 115/60Hz single phase, 20 amp dedicated circuit. Unit utilizes a dual compressor system rated at 1/2 HP each. Cord and plug set included.
  • 115/60/1 NEMA-5-20R
• Optional Features/accessories Upcharge And Lead Times May Apply.
  • Black exterior.
  • Stainless exterior.
  • Black aluminum interior liner with black shelving.
  • Stainless interior liner.
  • 6” (153 mm) standard legs.
  • 6” (153 mm) seismic/flanged legs.
  • 2–1/2" (64 mm) diameter castors.
  • 4” (102 mm) diameter castors.
  • Novelty baskets.
  • Additional shelves.
  • Pricing strips.
  • Padlock.
  • Barrel Locks – located in grill assembly (requires one per door)
