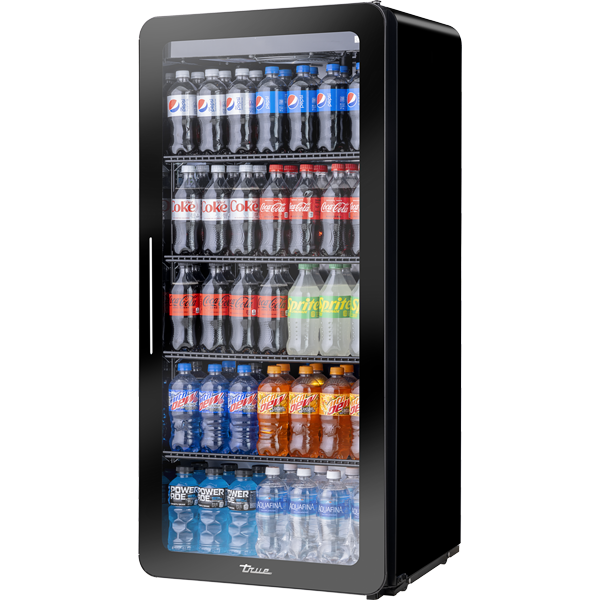

CVM-11-HC~EGC01

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8” (millimeters rounded up to next whole number).

• Design

  DESIGN

  • True’s Contemporary Series is built with durability, stability, and style in mind. Through the series’ curved edge design it redefines merchandising with its inspired product displays and increased beverage storage.
• Refrigeration System

  REFRIGERATION SYSTEM

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
• Cabinet Construction

  CABINET CONSTRUCTION

  • Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum interior liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • 2" (51mm) integrated rollers standard.
  • Door sign decal. Variety of decal options available.
• Door

  DOOR

  • “Low-E”, double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficient technology.
  • The door features an integrated LED handle indicator for a sleek, modern appearance.
  • Self closing door. Positive seal, torsion type closure system.
  • Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
  • Edge door will not change when an alternative interior or exterior finish is ordered.
• Shelving

  SHELVING

  • Four (4) adjustable, heavy duty PVC coated wire shelves 20–5/8”L x 17–1/2”D (524 mm x 445 mm). Four (4) chrome plated shelf clips included per shelf.
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2” (13 mm) increments.
• Lighting

  LIGHTING

  • LED interior lighting, safety shielded.
• Model Features
• Electrical

  ELECTRICAL

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
  • 115/60/1 NEMA-5-15R
• Optional Features/Accessories

  OPTIONAL FEATURES/ACCESSORIES Upcharge and lead times may apply.

  • White exterior.
  • Stainless steel exterior.
  • Black aluminum interior liner with black shelving.
  • Stainless steel interior liner.
  • 2–1/2" (64 mm) diameter castors.
  • Red wine thermostat.
  • White wine thermostat.
  • Chocolate thermostat.
  • Additional shelves.
  • TrueFlex gravity feed organizers.
  • TrueFlex Pac organizers.
  • Pricing strips.
